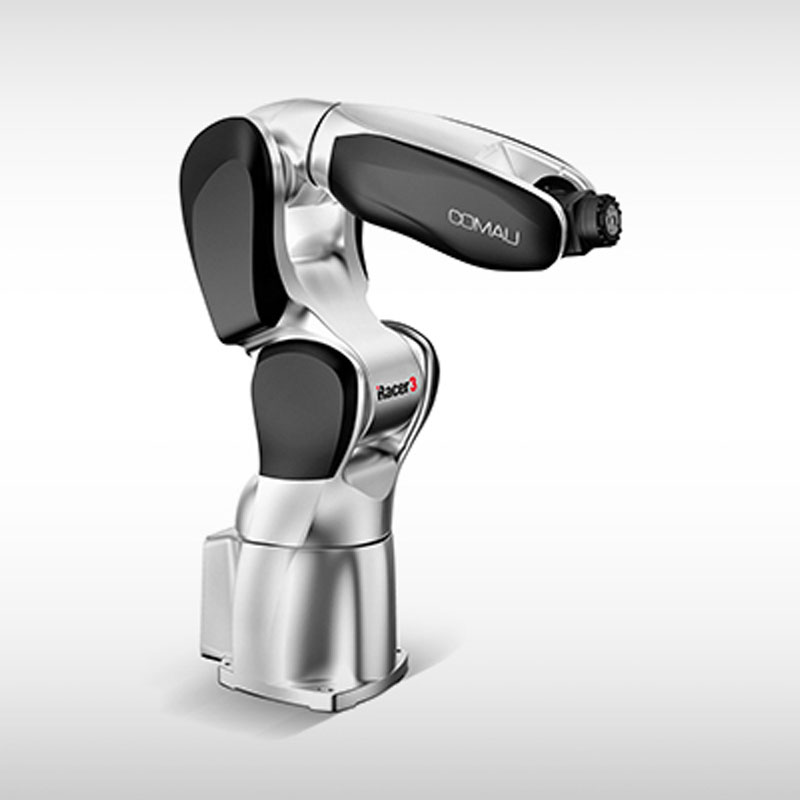

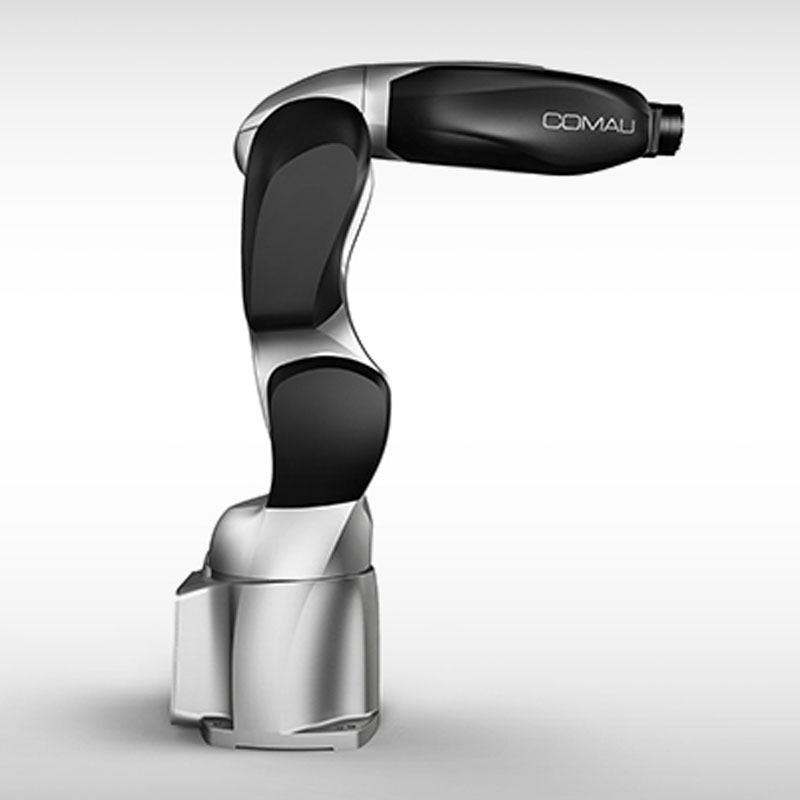

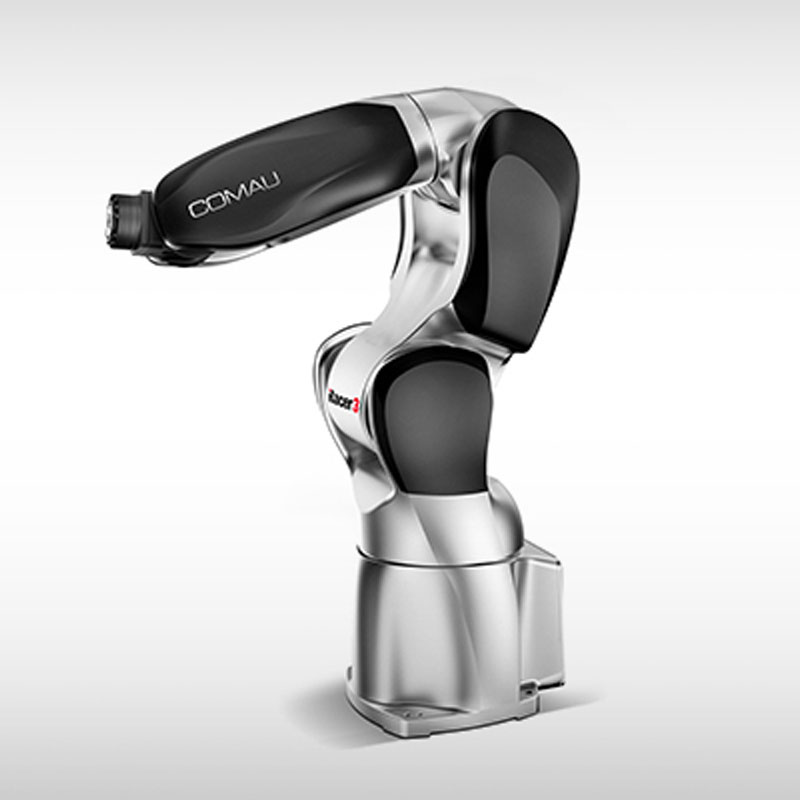

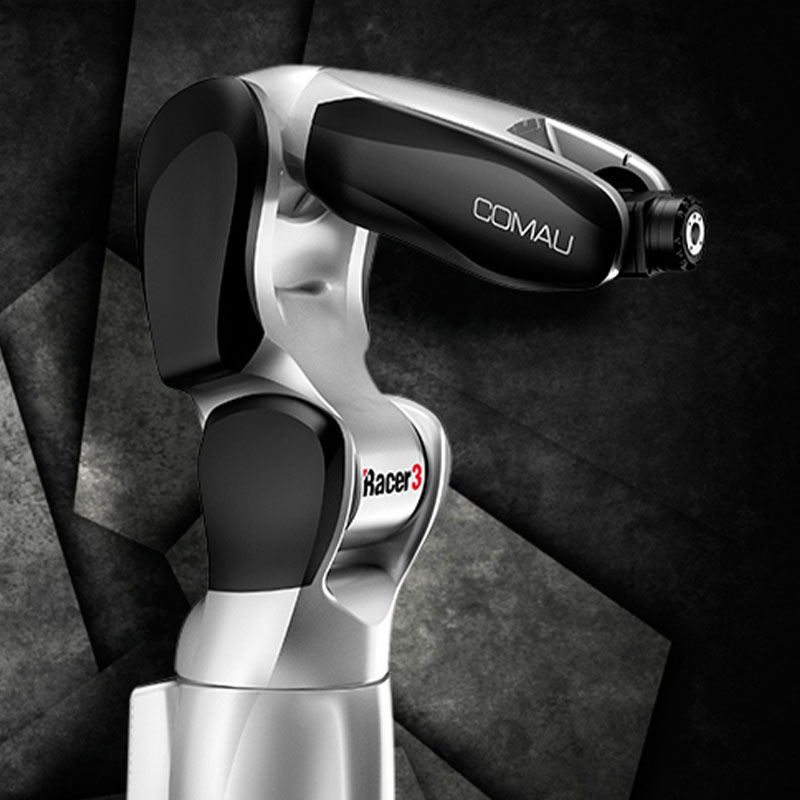

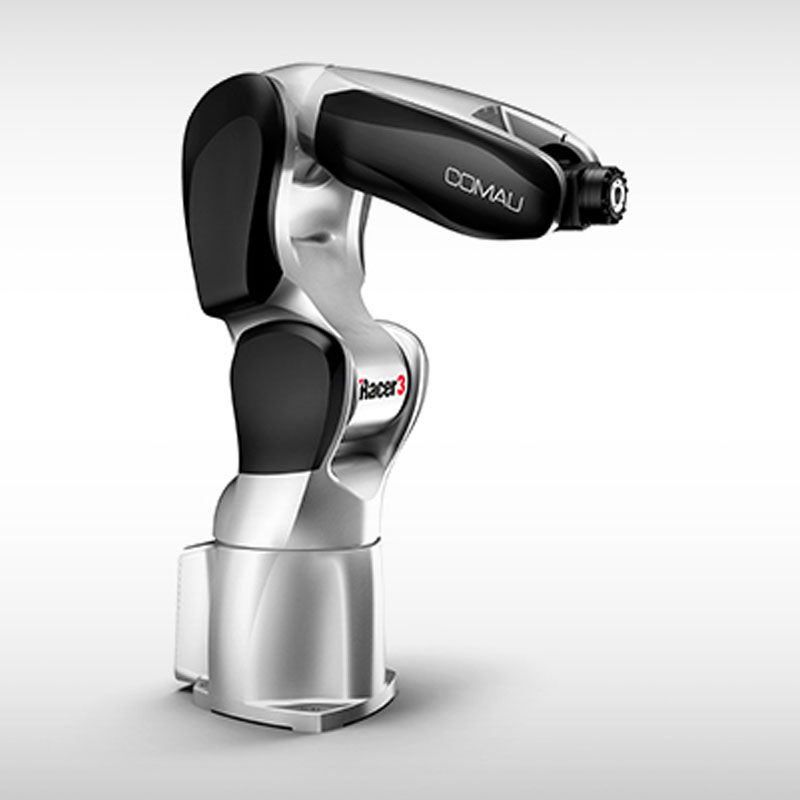

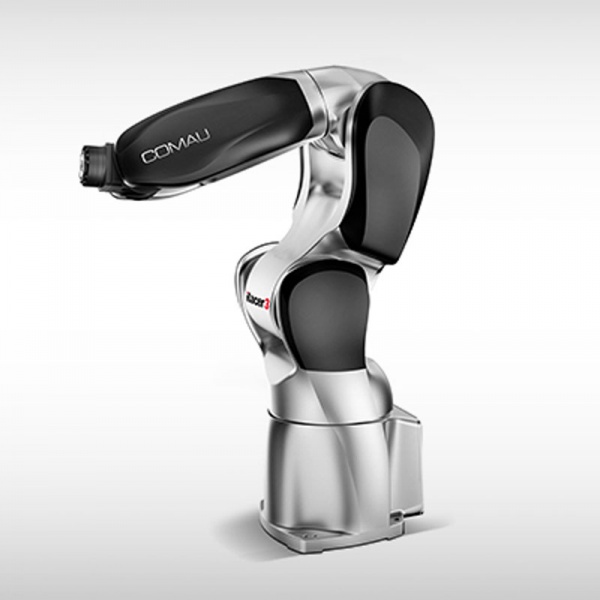

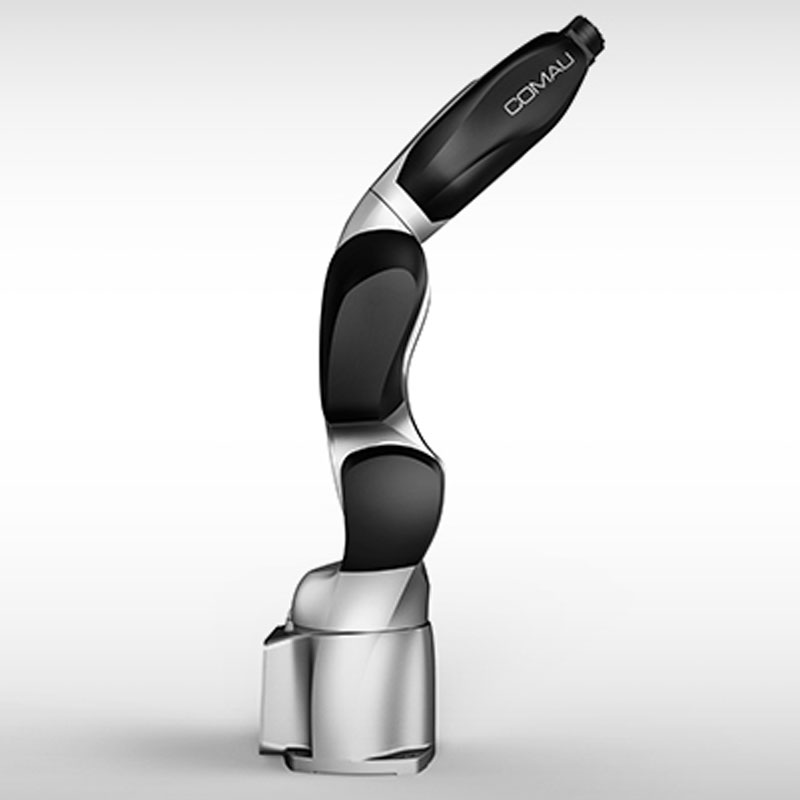

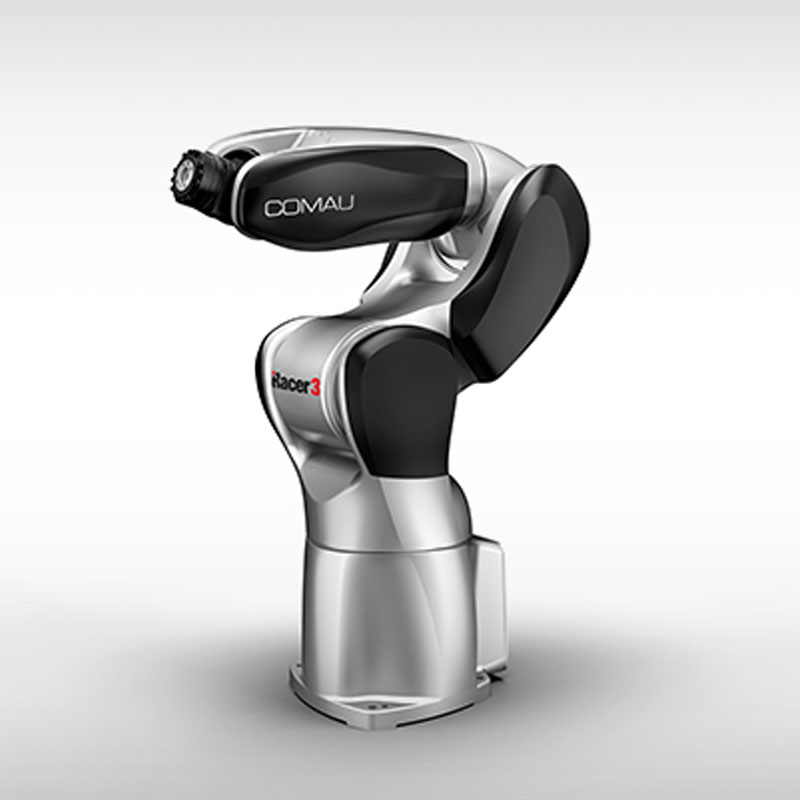

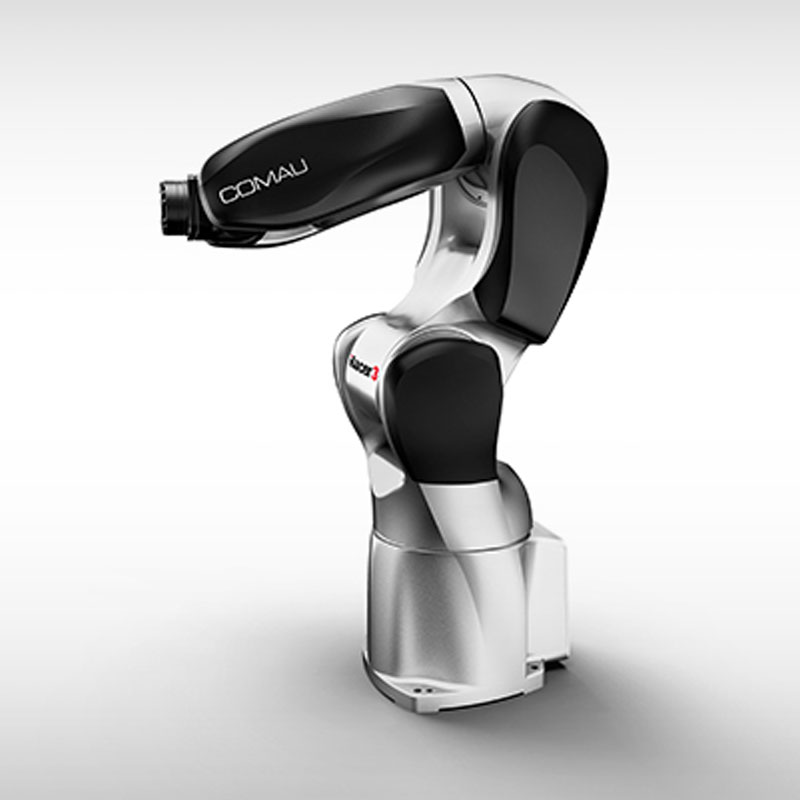

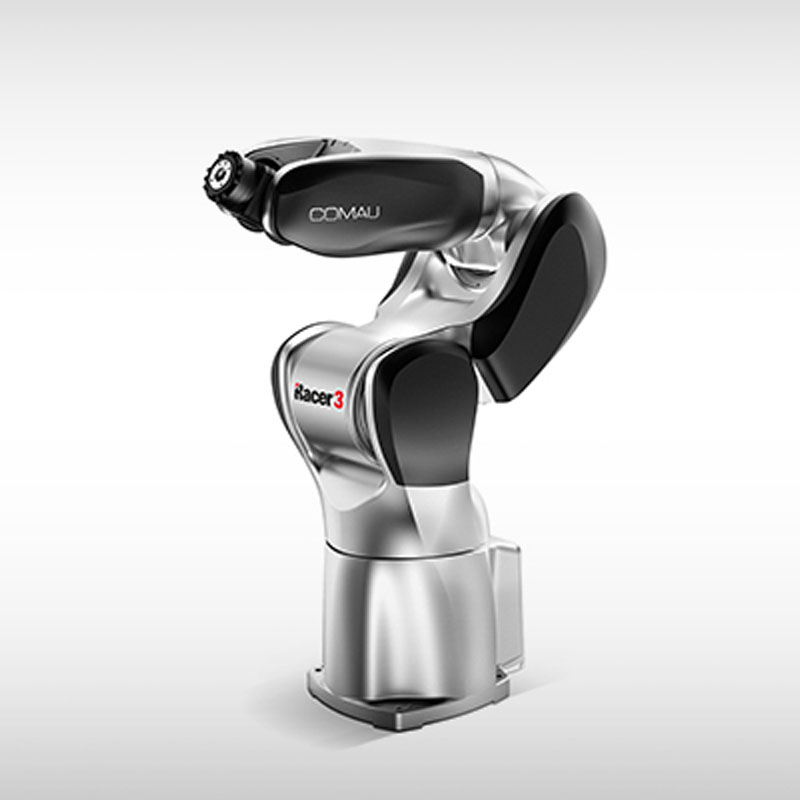

Technical specifications Racer-3-0.63
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 3 |
| Additional load on forearm (Kg) | 2 |
| Maximum horizontal reach (mm) | 630 |
| Torque on axis 4 (Nm) | 7.36 |
| Torque on axis 5 (Nm) | 7.36 |
| Torque on axis 6 (Nm) | 4.41 |
| Stroke (Speed) on Axis 1 | +/- 170° (430 °/s) |
| Stroke (Speed) on Axis 2 | -95°/ +135° (450 °/s) |
| Stroke (Speed) on Axis 3 | -155°/ +90° (500 °/s) |
| Stroke (Speed) on Axis 4 | +/- 200° (600 °/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (600° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (900° /s) |
| Repeatability (mm) | 0.02 |
| Tool coupling flange | ISO 9409 – 1 – A 40 |
| Robot weight (Kg) | 30 |
| Protection class | IP54 |
| Mounting position | Floor / Ceiling / Sloping / Wall |
| Operating Areas A (mm) | 1081 |
| Operating Areas B (mm) | 630 |
| Operating Areas C (mm) | 37 |
| Operating Areas D (mm) | 530 |
| Operating Areas E (mm) | 136 |
