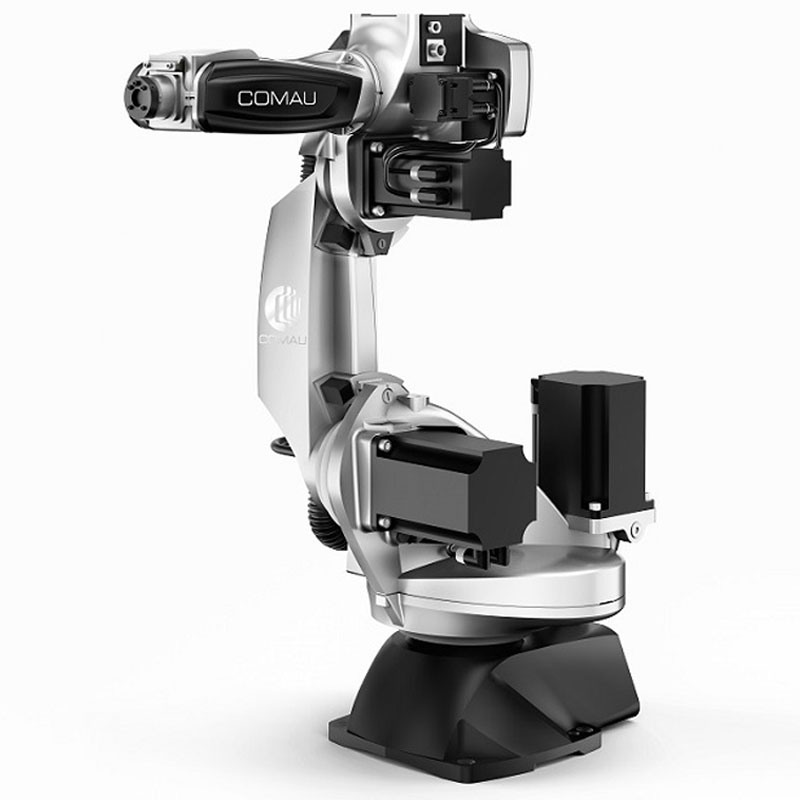

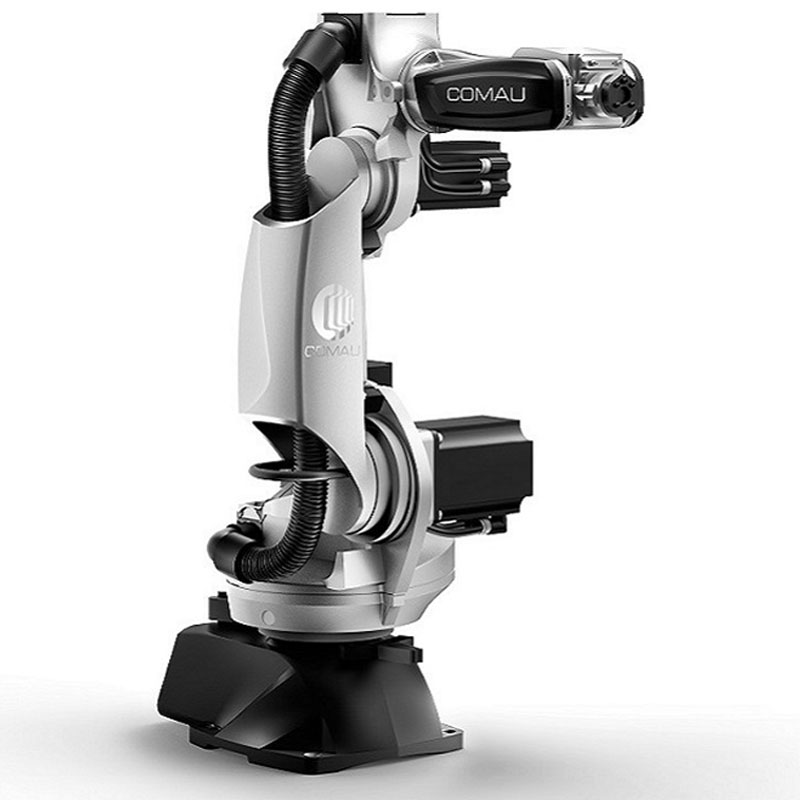

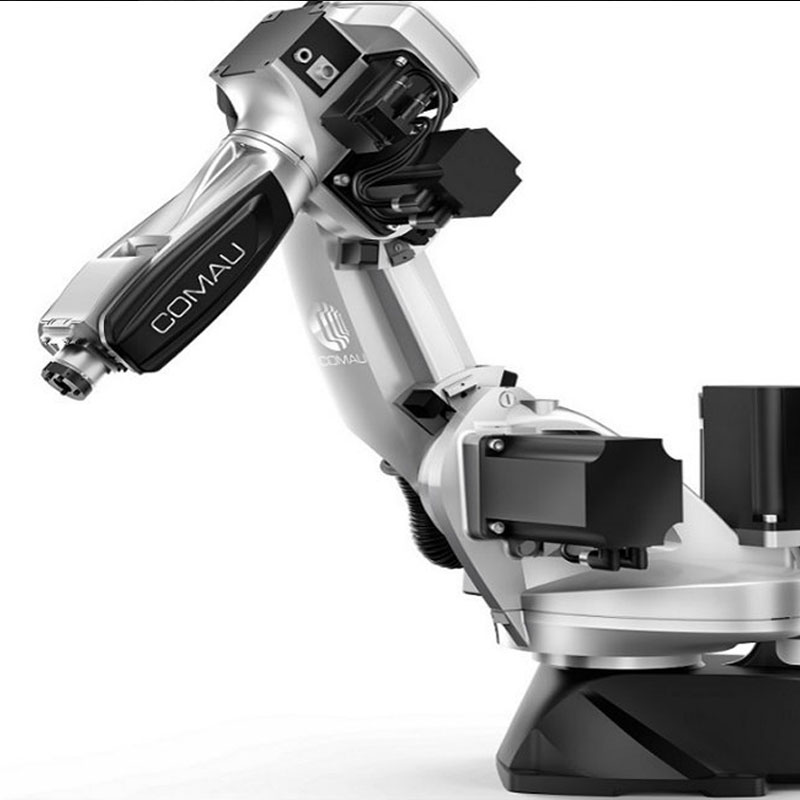

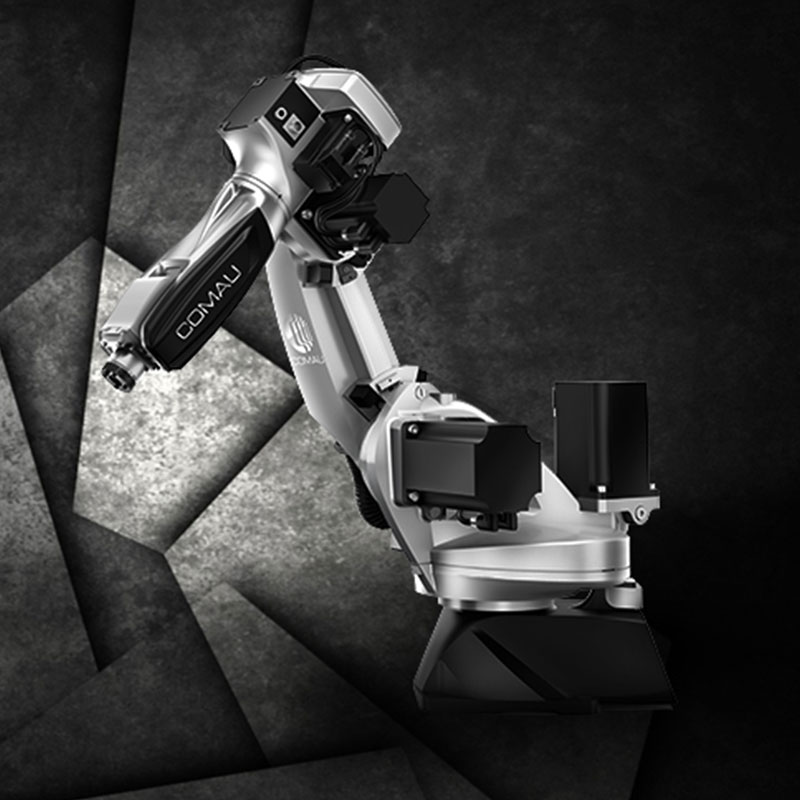

Technical specifications Racer-7-1.0
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 7 |
| Additional load on forearm (Kg) | 10 |
| Maximum horizontal reach (mm) | 999 |
| Torque on axis 4 (Nm) | 13 |
| Torque on axis 5 (Nm) | 13 |
| Torque on axis 6 (Nm) | 7.5 |
| Stroke (Speed) on Axis 1 | +/- 165° (250 °/s) |
| Stroke (Speed) on Axis 2 | -65°/ +150° (250 °/s) |
| Stroke (Speed) on Axis 3 | -165°/ -37° (300 °/s) |
| Stroke (Speed) on Axis 4 | +/- 210° (550 °/s) |
| Stroke (Speed) on Axis 5 | +/- 137° (550° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (600° /s) |
| Repeatability (mm) | 0.05 |
| Tool coupling flange | ISO 9409 – 1 – A – 40 |
| Robot weight (Kg) | 173 |
| Protection class | IP65 |
| Mounting position | Floor / Ceiling / Sloping / Wall |
| Operating Areas A (mm) | 1279 |
| Operating Areas B (mm) | 999 |
| Operating Areas C (mm) | 904 |
| Operating Areas D (mm) | 554 |
| Operating Areas E (mm) | 385 |
