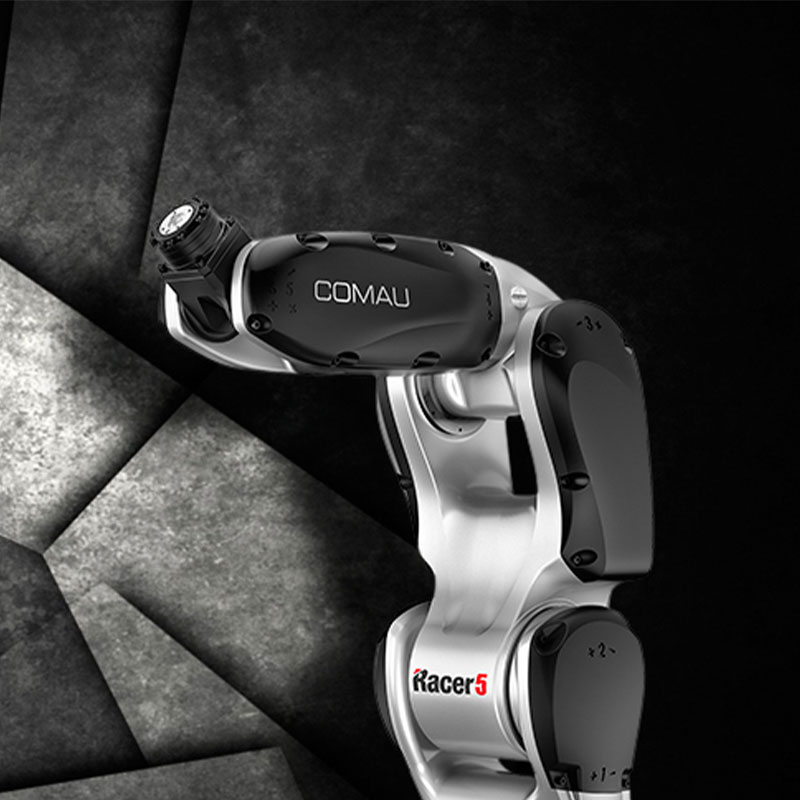

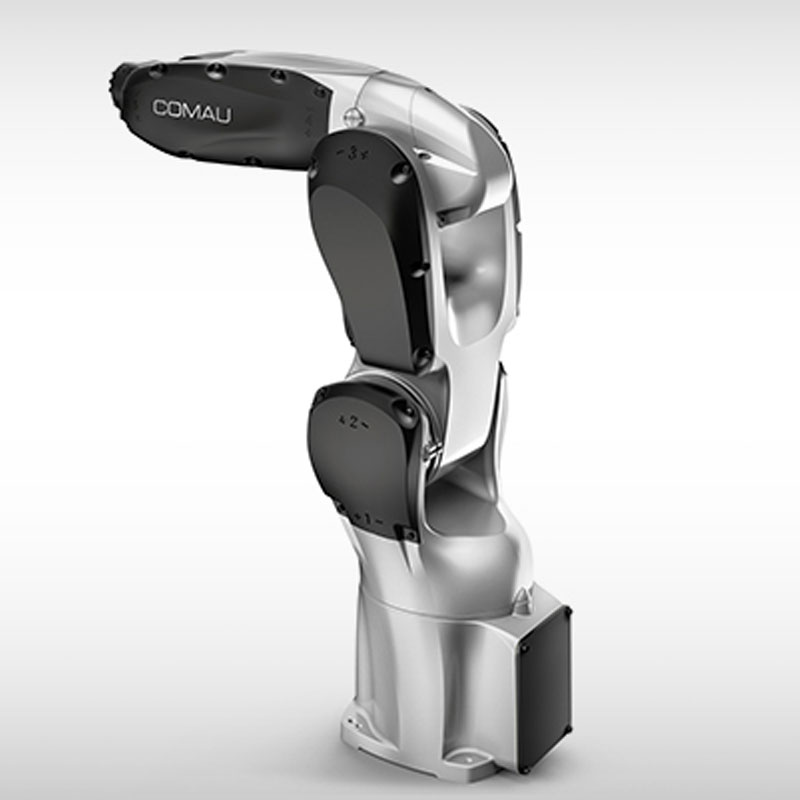

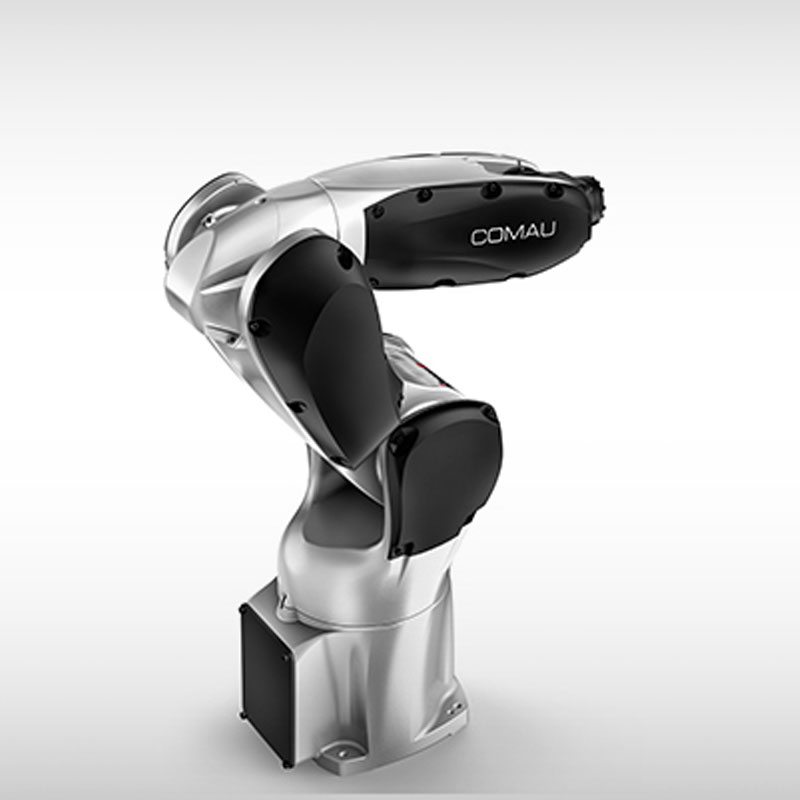

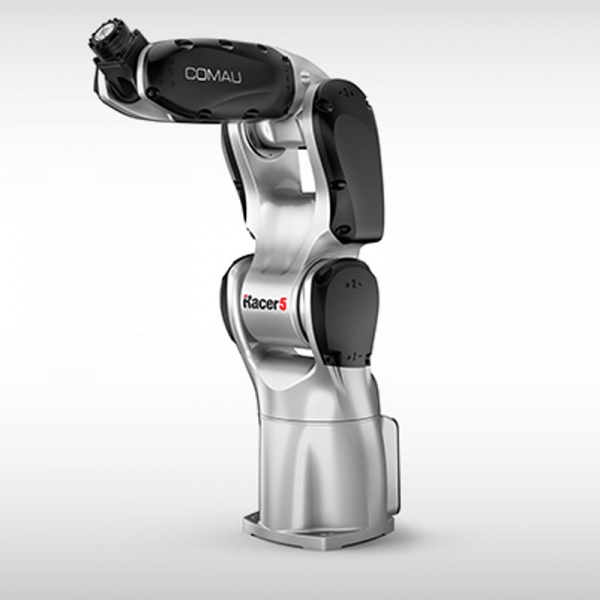

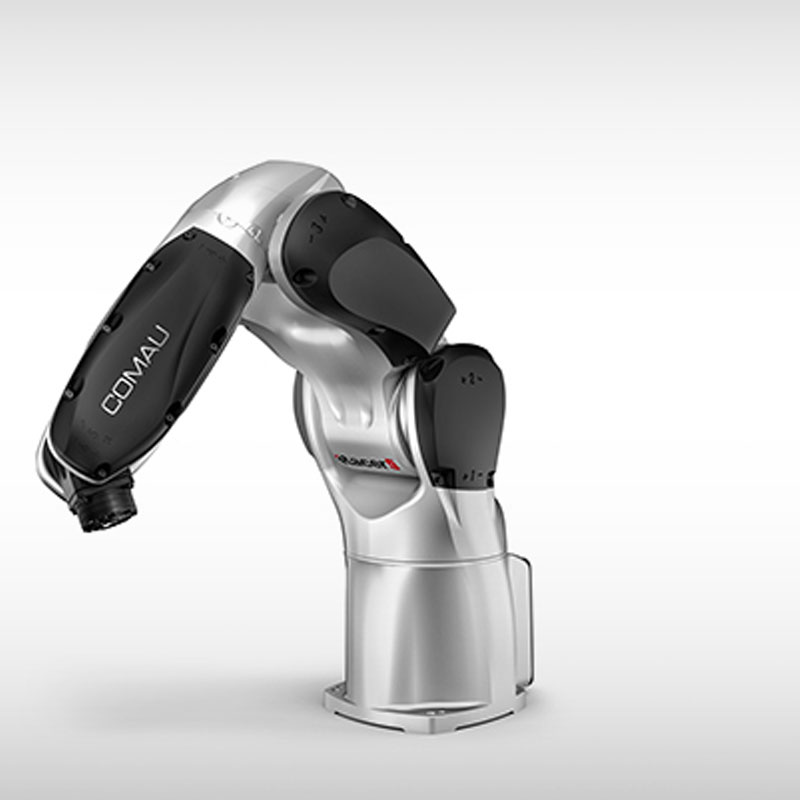

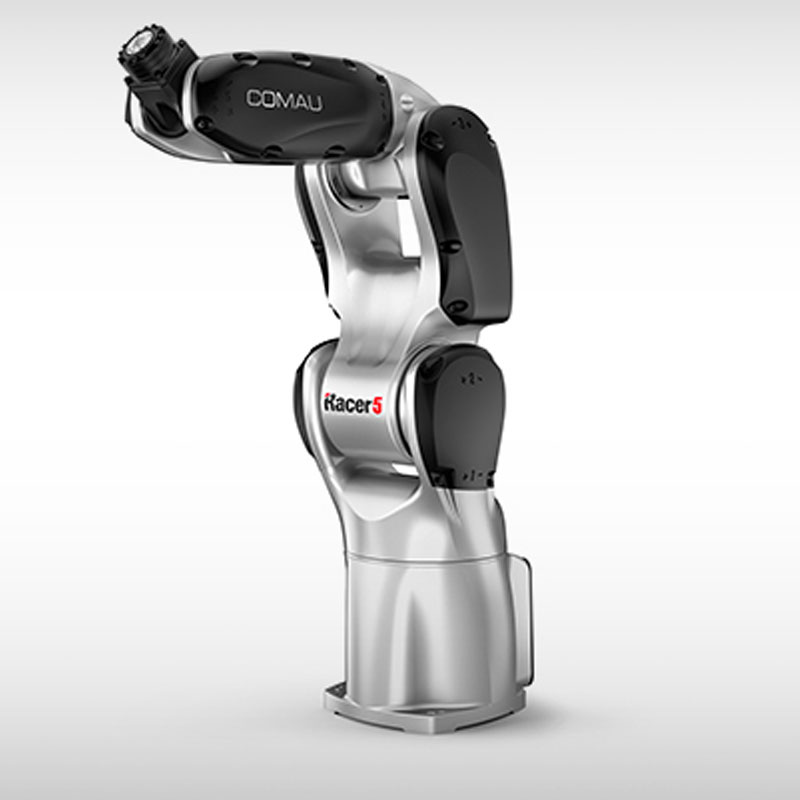

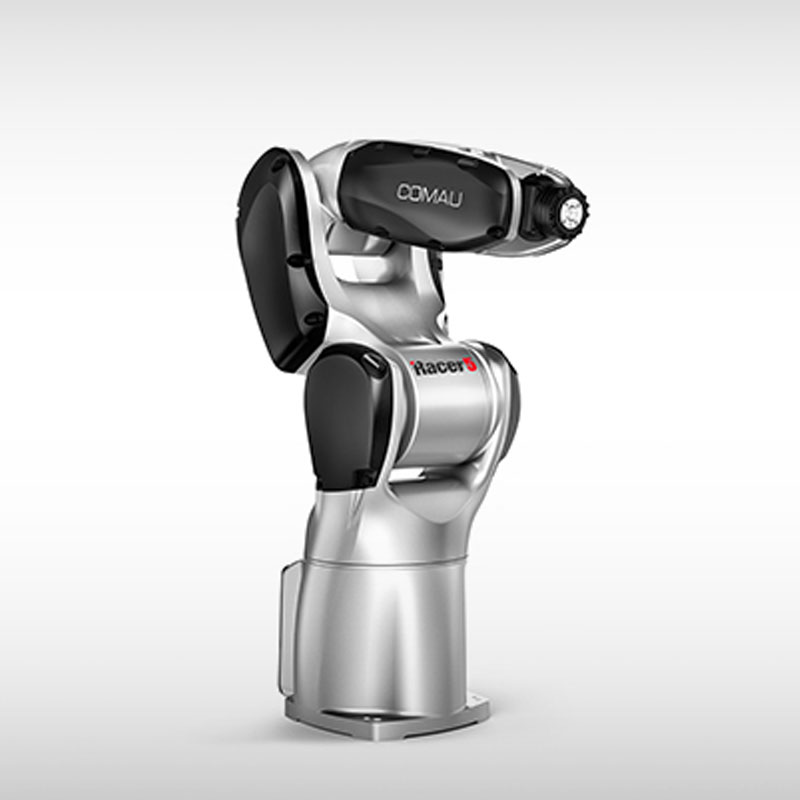

Technical specifications Racer-5-0.63
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 5 kg (For Pick&Place 6 kg with a limited stroke of the 5th axis) |
| Maximum horizontal reach (mm) | 630 |
| Torque on axis 4 (Nm) | 8,83 Nm |
| Torque on axis 5 (Nm) | 8,83 Nm |
| Torque on axis 6 (Nm) | 4.91 Nm |
| Stroke (Speed) on Axis 1 | +/- 170° (400°/s) |
| Stroke (Speed) on Axis 2 | -95°/ +135° (360°/s) |
| Stroke (Speed) on Axis 3 | -155° / +90° (400°/s) |
| Stroke (Speed) on Axis 4 | +/- 200° (500°/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (500°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (800°/s) |
| Repeatability (mm) | 0.03 mm |
| Tool coupling flange | ISO 9409-1- A25 |
| Robot weight (Kg) | 30 kg |
| Protection class | IP54 |
| Mounting position | Floor / Ceiling / Wall (Allowable with payload limitations) |
| Operating Areas A (mm) | 1081 mm |
| Operating Areas B (mm) | 630 mm |
| Operating Areas C (mm) | 37 mm |
| Operating Areas D (mm) | 530 mm |
| Operating Areas E (mm) | 136 mm |
